Widgets

WidgetRenderType(s)
simple_text
Simple field dedicated to text		string
number
Simple field dedicated to numbers		integer, float
text_area
Multi-line text field		any
dropdown
Menus display a list of options		any but raw
auto_complete
Provides suggestions while you type into the field		string
radios
Graphical control element that allows the user to choose only one of a exclusive options		any but raw
switch
Choosing between 2 positions on/off		boolean

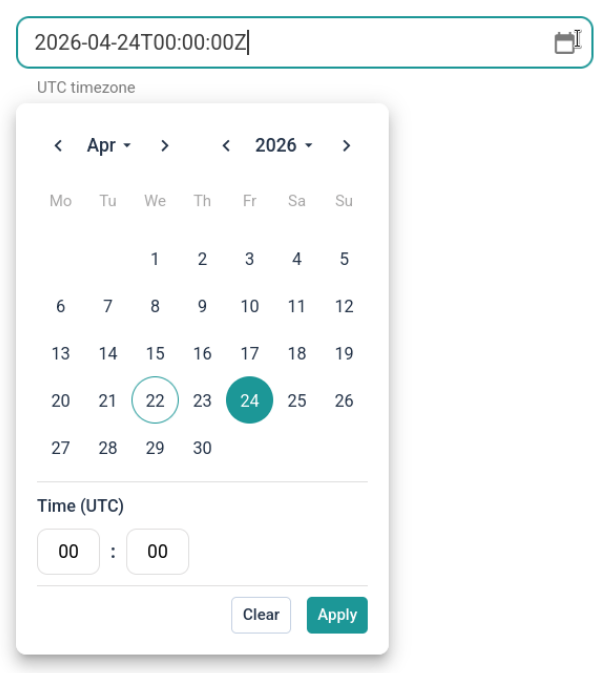

date_time
Date and time picker with optional format and weekday-only selection		string

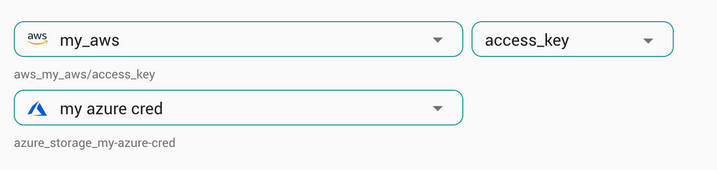

cy_cred
Expose cycloid credentials available		string
cy_inventory_resource
Select a resource attribute from the inventory and link the value to this asset		string, integer, array
cy_inventory_output
Select a output attribute from the inventory and link the value to this asset		any but raw
slider_range
Select option by dragging a slider along a range		integer
slider_list
Select option by dragging a slider along list of options		string, boolean, integer
cy_scs
Expose cycloid catalog repositories available		string
cy_crs
Expose cycloid config repositories available		string

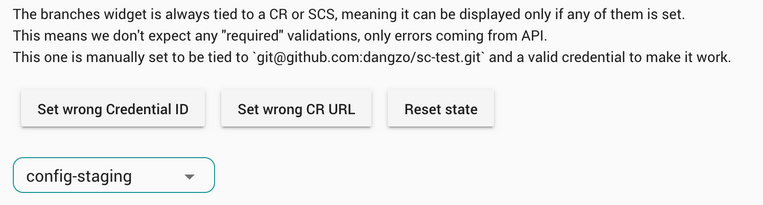

cy_branch
Expose branches available from cy_scs or cy_crs		string
hiddenNothing displayed Widget used to store and pass values that are not visible to the end userany

Define pipeline variables​

Terraform variables​

Define the widget variable in your .forms.yml file​

.forms.yml
use_cases:
- name: myusecase
  sections:
  - name: mysection
    groups:
    - name: mygroup
      # Here we use the terraform technology
      technologies: [terraform]
      vars:
        - name: "Terraform variable"
          description: "Example of terraform variable."
          key: my_terraform_variable
          widget: simple_text
          type: string
          default: "mydefaultvalue"

Define your variable in your terraform module​

terraform/your-module/variables.tf
variable "my_terraform_variable" {
    type = string
}

Don't forget to create your main.tf.sample​

main.tf.sample
module "example" {
  #####################################
  # Do not modify the following lines #
  source = "./module-example"

  project      = var.project
  env          = var.env
  organization = var.organization
  #####################################

  other_module_variable = ""

  # The terraform variable will be injected by StackForms as a module argument here
  # like that :
  my_terraform_variable = "mydefaultvalue"
}

Now, my_terraform_variable variable can be used in your terraform code.

Ansible variables​

Details​

StackForms will inject ansible variables using the --ansible-extra-var command line argument. So they will always win according to ansible variable precedence.

Example​

Define the widget variable in your .forms.yml file​

.forms.yml
use_cases:
- name: myusecase
  sections:
  - name: mysection
    groups:
    - name: mygroup
      # Don't forget to use the ansible technology
      technologies: [ansible]
      vars:
        - name: "Ansible variable"
          description: "Example of ansible variable."
          key: my_ansible_variable
          widget: simple_text
          type: string
          default: "mydefaultvalue"

Keep in mind your variable name is defined by the key field (my_ansible_variable)

Use your variable in ansible​

ansible/playbook.yml
- name: Hello world
  ansible.builtin.debug:
    msg: My stackform var is {{ my_ansible_variable }}

In this example, the variable is used to display a custom message in an ansible task.
